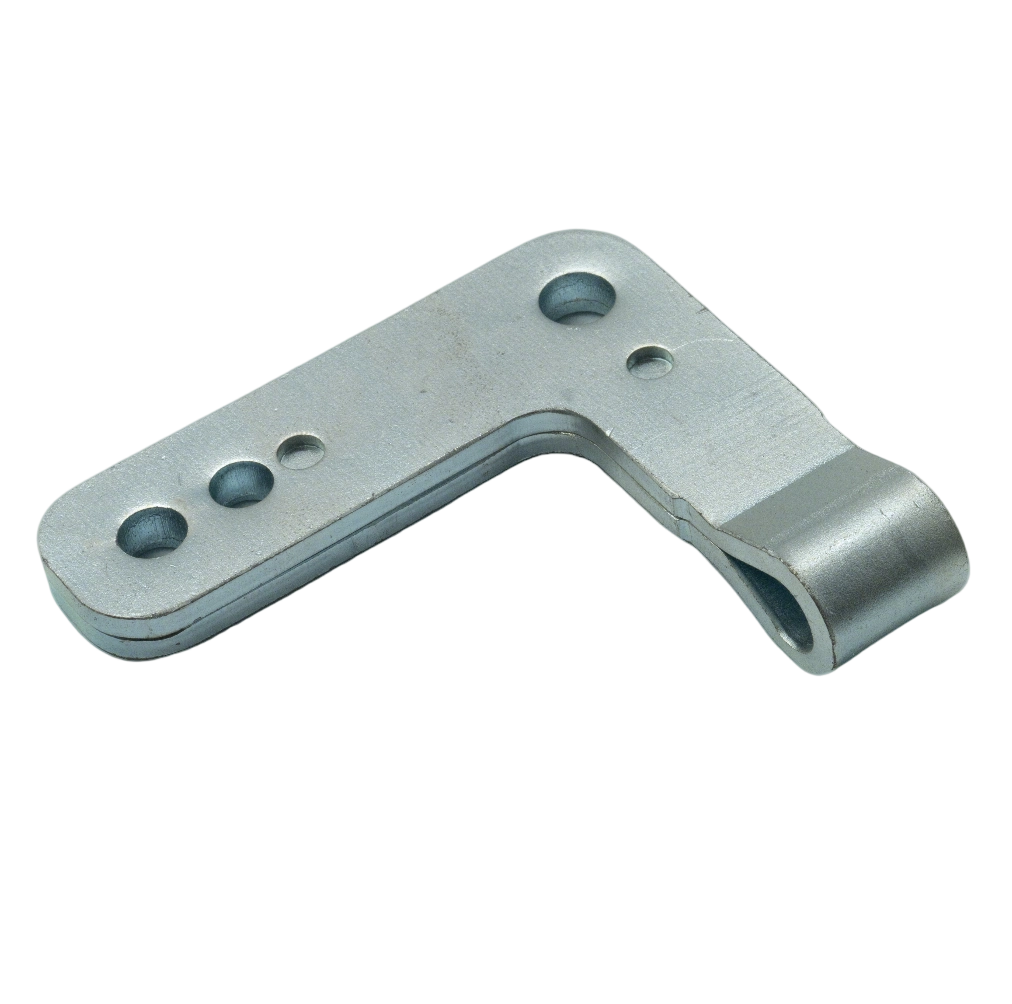

Offset End L-type Stamping Connecting Bracket

RC-ST-026

Description

L-shaped stamping bracket with offset widened end lug and multiple mounting holes, special offset arm corner support for offset installation demands, custom arm outline available.

Manufacturing Process

Profiled sheet blanking → right angle bending → multi-hole punching → edge deburring

Material

Cold rolled steel plate

Surface Treatment

Blue-white zinc plating / nickel plating

Features

Offset widened end lug design to avoid component interference, multi-hole adjustable installation, L-type dual-way supporting structure

Application

Offset frame connection, equipment housing corner fixing, narrow offset space furniture reinforcement brackets

Drawing
