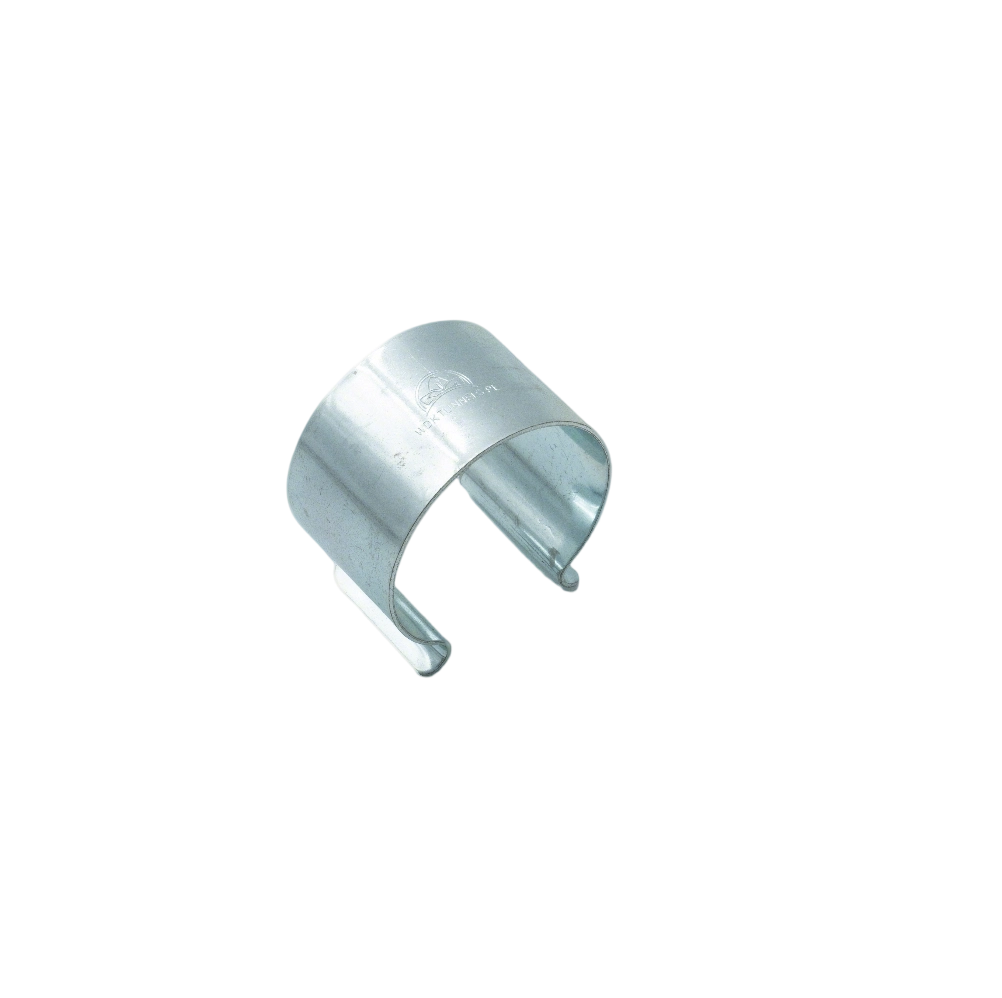

Small Single-lug U-curve Stamping Clip

RC-ST-019

Description

Mini semi-circular U-type stamping clip with one flat mounting lug, tiny elastic retainer for small-diameter tube fixing, compact micro size customizable.

Manufacturing Process

Precision arc bending stamping → single lug punching → micro deburring

Material

Spring steel / SS304

Surface Treatment

Passivation / thin zinc plating

Features

Mini compact outline, single-lug one-side installation, elastic clamping for micro pipelines, space-saving hidden assembly

Application

Precision instrument thin tube clamping, electronic internal wire fixing, miniature sensor pipe retainers
