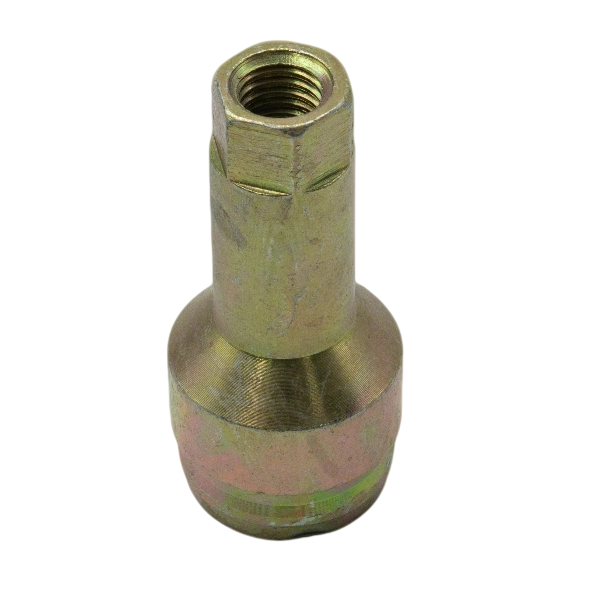

Step Threaded Insert Bushing

RC-SB-005

Description

Integrated stepped cylindrical bushing with thickened flange base and full internal female thread. Step shoulder acts as positioning stop during installation, internal thread matches standard machine screws for threaded fastening. Custom thread specification, outer diameter and total length are supported.

Manufacturing Process

CNC turning for step contour & inner hole → internal thread tapping → thread chamfering → deburring & cleaning → anti-corrosion plating

Material

Medium carbon steel / Alloy steel

Surface Treatment

Color yellow zinc plating / black nickel plating

Features

One-piece step flange for precise depth positioning, precise internal thread for stable screw locking, thickened shoulder for higher load capacity, optional heat treatment for high-vibration working conditions, available for press-fit or welding installation

Application

Automotive wheel matching parts, furniture threaded inserts, plastic housing embedded nuts, agricultural machinery connecting sleeves, hydraulic equipment threaded positioning bushings

Drawing
