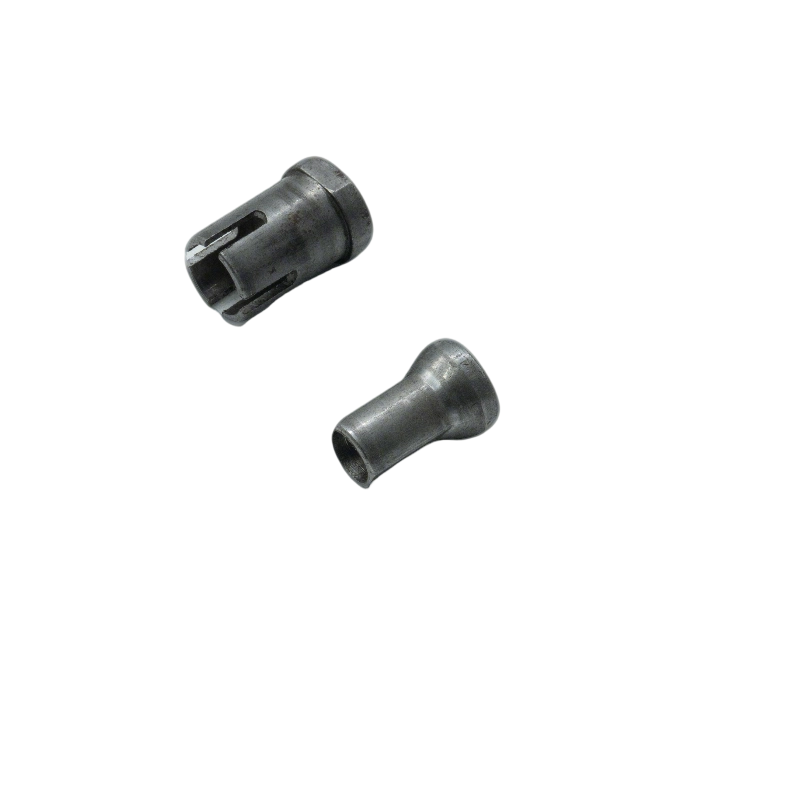

Double End Reducing Joint Sleeve

RC-TP-013

Description

Two-way reducing CNC turned joint sleeve, double-end diameter conversion bushing for connecting different-diameter shafts on mechanical frames.

Manufacturing Process

CNC Composite Turning, Double Bore Machining, Deburring

Material

Carbon Steel, Alloy Steel, Stainless Steel

Surface Treatment

Zinc Plating, Black Oxide, Hard Chrome Plating

Features

• Dual end reducing inner bore to realize two-size shaft connection
• Integral one-piece CNC machining with high torsion resistance
• Custom inner hole sizes at both ends as per drawing requirements
• Uniform wall thickness for balanced force bearing
• Smooth inner bore to reduce shaft rotation wear

Application

Mechanical Transmission Frames, Conveyor Equipment, Agricultural Machinery Linkages, Hydraulic Connecting Parts, Robotic Joints

Drawing
