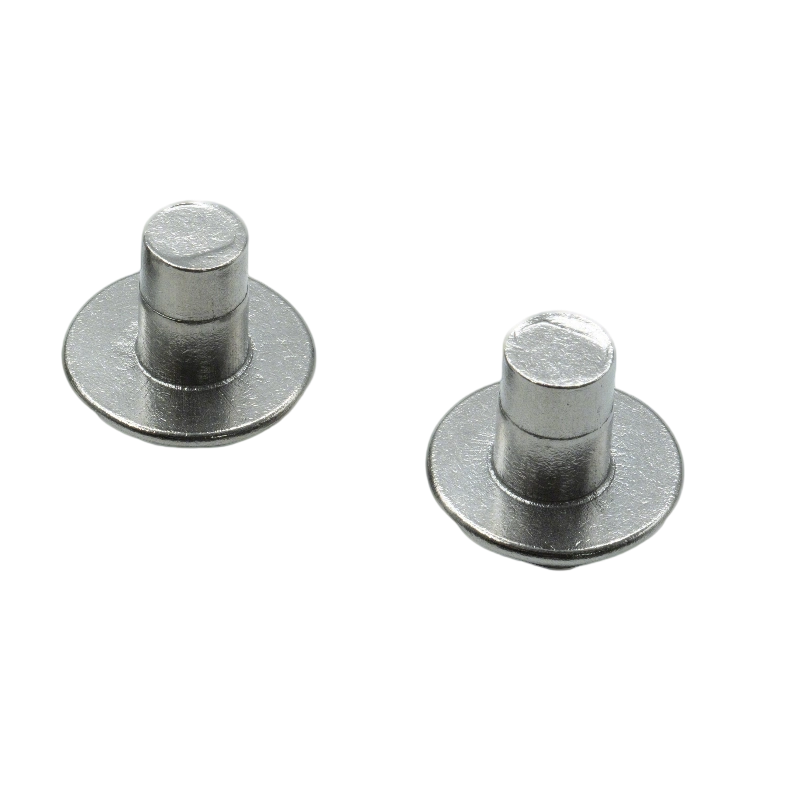

Double Flange Locating Pin Set

RC-TP-005

Description

Matched double flange step pin assembly customized by CNC turning, dual limiting fastener kits for double-sided alignment and layered spacing on molds and automation equipment.

Manufacturing Process

CNC Turning, Precision Grinding, Batch Matching Packaging

Material

Carbon Steel, Alloy Steel, Stainless Steel

Surface Treatment

Zinc Plating, Black Oxide, Passivation, Nickel Plating

Features

• Double flange bidirectional limit structure for dual-side positioning
• Complete matched size combination kits for one-stop assembly
• Custom step length, flange thickness and shaft diameter specification
• Consistent tolerance for batch matching assembly
• OEM mixed-size packaging service supported

Application

Multi-Cavity Molds, Automated Production Lines, Stacked Fixtures, Automotive Tooling, Household Appliance Hardware
