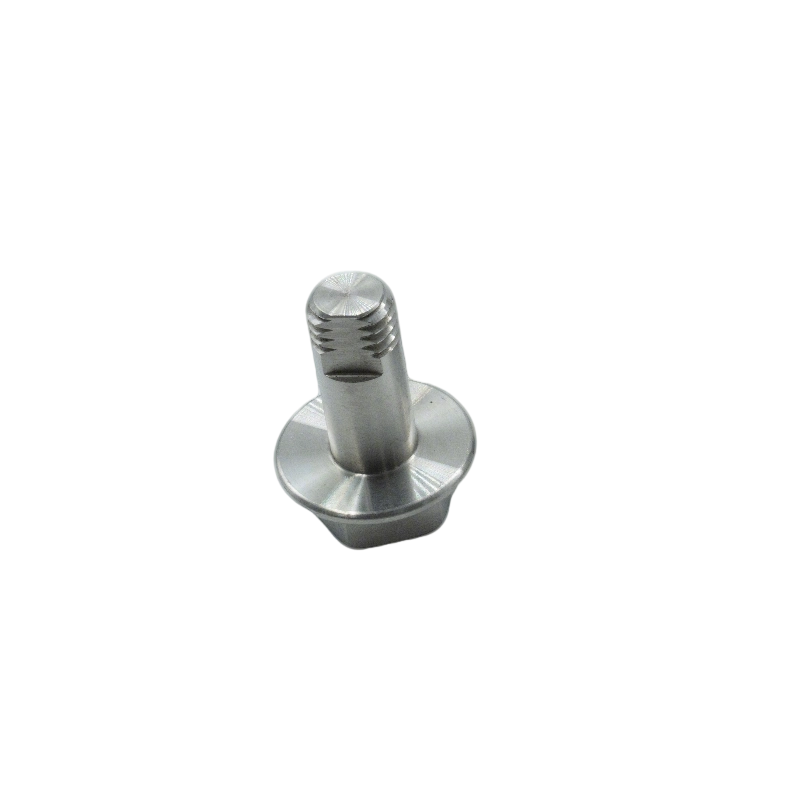

Single Flange Step Dowel

RC-TP-003

Description

Custom CNC turned single flange step dowel with integrated locating shoulder, precision limiting fastener for accurate fixed positioning of equipment frames and fixture assemblies.

Manufacturing Process

CNC Turning, Shoulder Surface Grinding, Deburring

Material

45# Carbon Steel, 40Cr Alloy Steel, Stainless Steel

Surface Treatment

Zinc Plating, Black Oxide, Phosphate, Hardening & Tempering

Features

• Integrated locating flange for reliable axial limiting
• Dual-diameter step shaft for dual-stage positioning
• Custom flange thickness, step length and outer diameter
• Flat high-precision flange locating surface
• High load-bearing stability for fixture long-term use

Application

Injection Molds, Automation Tooling, Industrial Frames, Packaging Machinery, Electronic Assembly Jigs

Drawing
