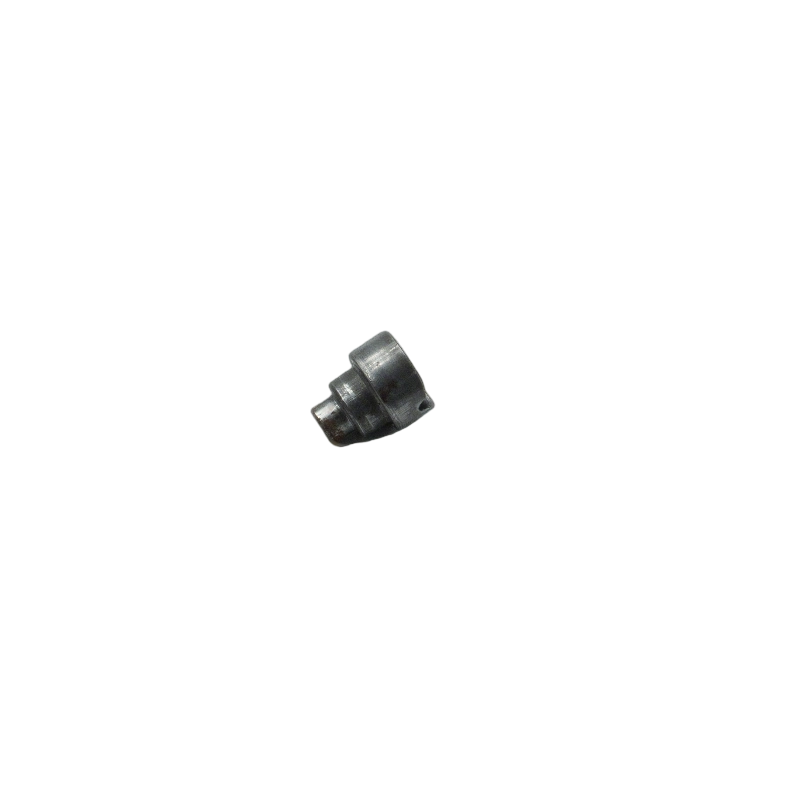

Mini Small Turning Pin

RC-TP-002

Description

Micro precision CNC turned miniature locating pin, ultra-small size positioning fastener specially designed for compact electronic devices and tiny precision equipment assembly.

Manufacturing Process

Micro CNC Lathe Turning, Centerless Fine Grinding, Mirror Polishing

Material

High Carbon Steel, SUS304/SUS316 Stainless Steel, Aluminum Alloy

Surface Treatment

Bright Zinc Plating, Passivation, Black Oxide, Hard Chrome Plating

Features

• Ultra-small outer diameter micro size for narrow installation space
• Strict micron-level dimensional tolerance control
• Anti-corrosion stainless steel material optional
• Burr-free smooth surface to avoid scratch during assembly
• Custom micro dimension & step structure based on technical drawings

Application

Precision Instruments, Electronic Connectors, Mini Medical Hardware, Watch Components, Small Automation Jigs

Drawing
