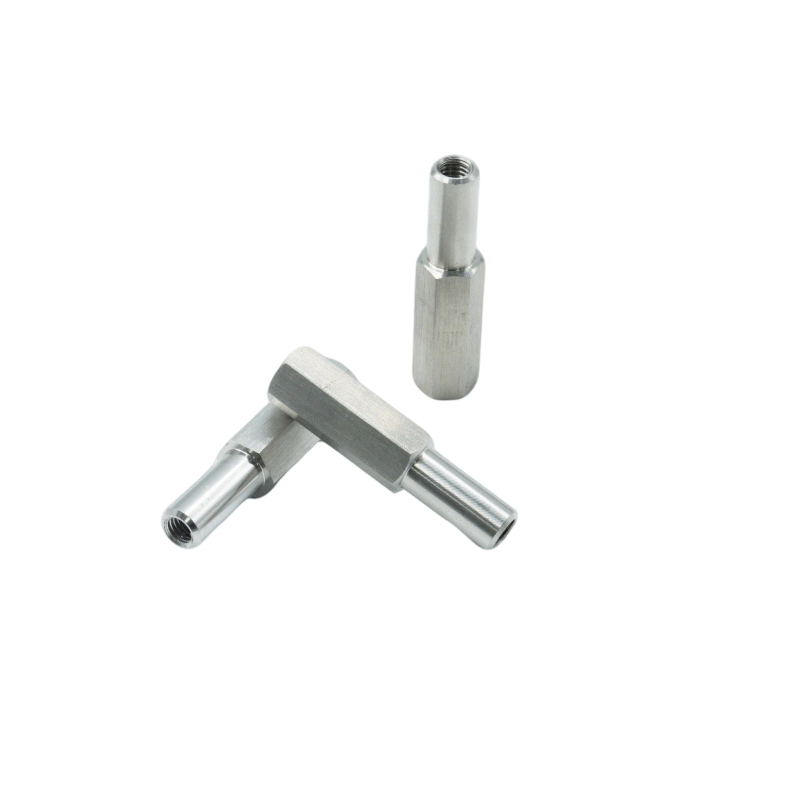

T-Type Step Connecting Pin

RC-PN-014

Description

T-shaped multi-stage step locating pin with vertical auxiliary branch shaft, dual-purpose positioning pin for multi-component overlapping assembly.

Manufacturing Process

CNC Composite Turning, Milling, Precision Grinding

Material

Carbon Steel, SUS304 Stainless Steel, Alloy Steel

Surface Treatment

Zinc Plating, Passivation, Black Oxide, Hard Chrome Plating

Features

• T-type composite structure realizes double positioning limit
• Custom branch shaft length and main shaft step size
• Tight tolerance control for overlapping multi-part assembly
• Wear-resistant hardening treatment optional
• Small batch prototype fast turnaround

Application

Plastic Molds, Electronic Assembly Fixtures, Packaging Machines, Household Appliance Components, Precision Testing Tools
