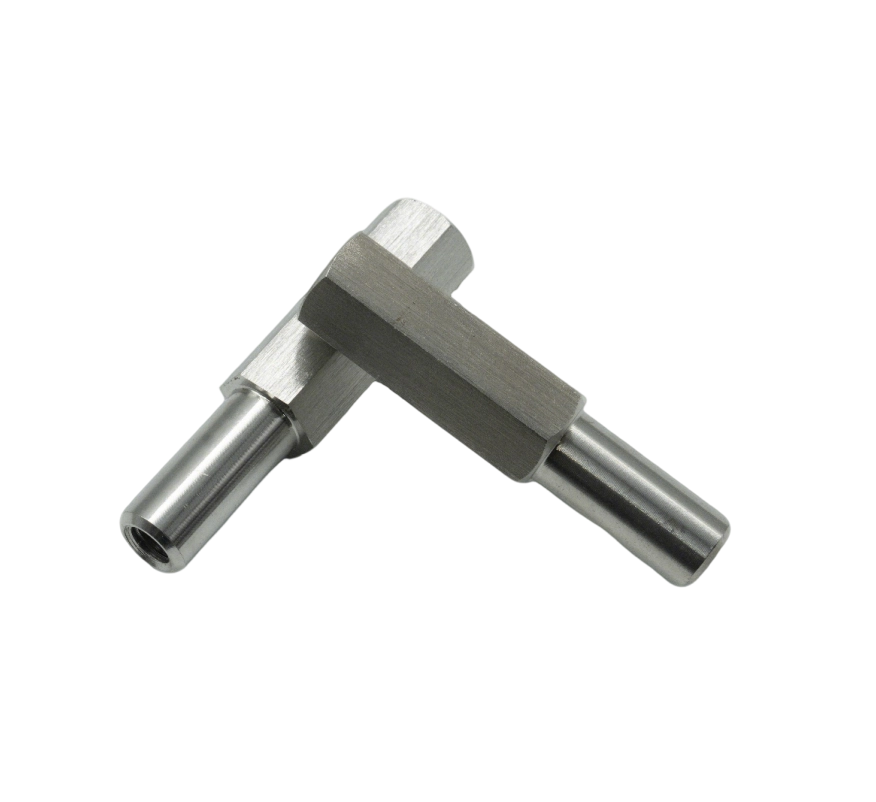

90 Degree Elbow Joint Shaft

RC-PN-013

Description

Custom right-angle elbow connecting shaft with two-way step pins, L-shaped cross joint shaft for multi-direction mechanical transmission assembly.

Manufacturing Process

CNC Turning, Milling, Angle Chamfering, Deburring

Material

Alloy Steel, Carbon Steel, Stainless Steel

Surface Treatment

Zinc Plating, Black Oxide, Nickel Plating

Features

• 90° integrated elbow structure for vertical cross connection
• Double step shafts on both ends for dual positioning
• Custom shaft diameter and arm length on two sides
• High structural rigidity for torsion load
• Non-standard special angle customization available

Application

Automation Transmission Equipment, Mechanical Control Linkages, Fitness Equipment, Medical Device Frames, Instrument Hardware

Drawing
