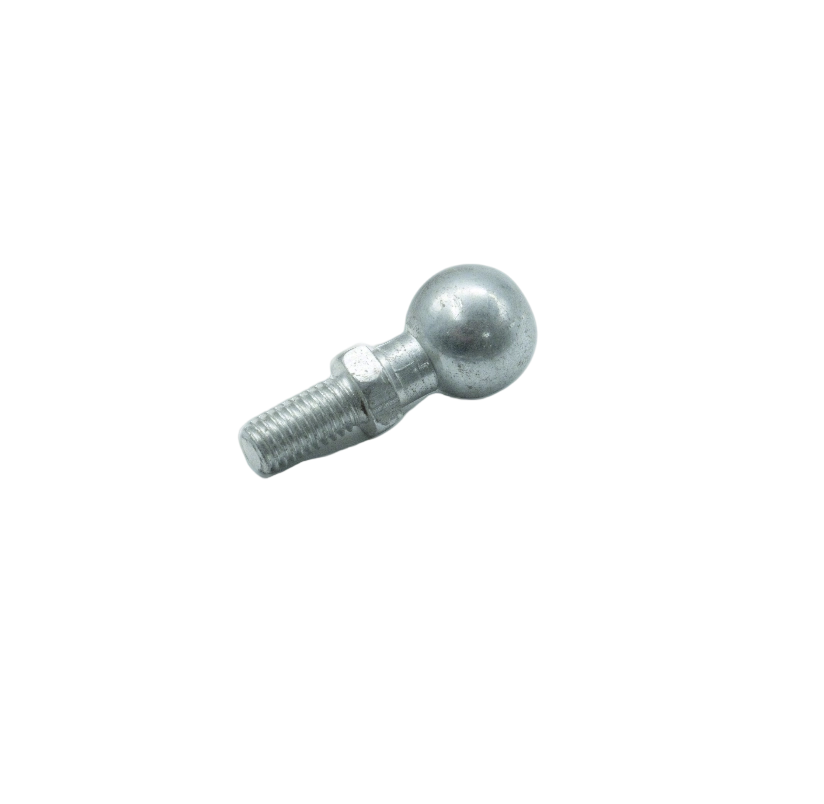

Mini Ball Head Locating Pin

RC-PN-005

Description

Small-size CNC turned mini ball head pin custom made by technical drawings, compact swing joint fastener for miniature precision equipment movable connection.

Manufacturing Process

Micro CNC Precision Turning, Polishing, Deburring

Material

Carbon Steel, SUS304 Stainless Steel, Aluminum Alloy

Surface Treatment

Bright Zinc Plating, Passivation, Mirror Polishing, Black Oxide

Features

• Solid seamless smooth ball head, no surface burrs
• Low-profile mini compact size for narrow installation space
• Full OEM custom size & ball radius customization
• Lightweight structure with stable swing performance
• Small batch prototype fast delivery available

Application

Mini Electronic Devices, Precision Instrument, Small Automation Jigs, Toy Mechanical Parts, Medical Mini Hardware

Drawing
