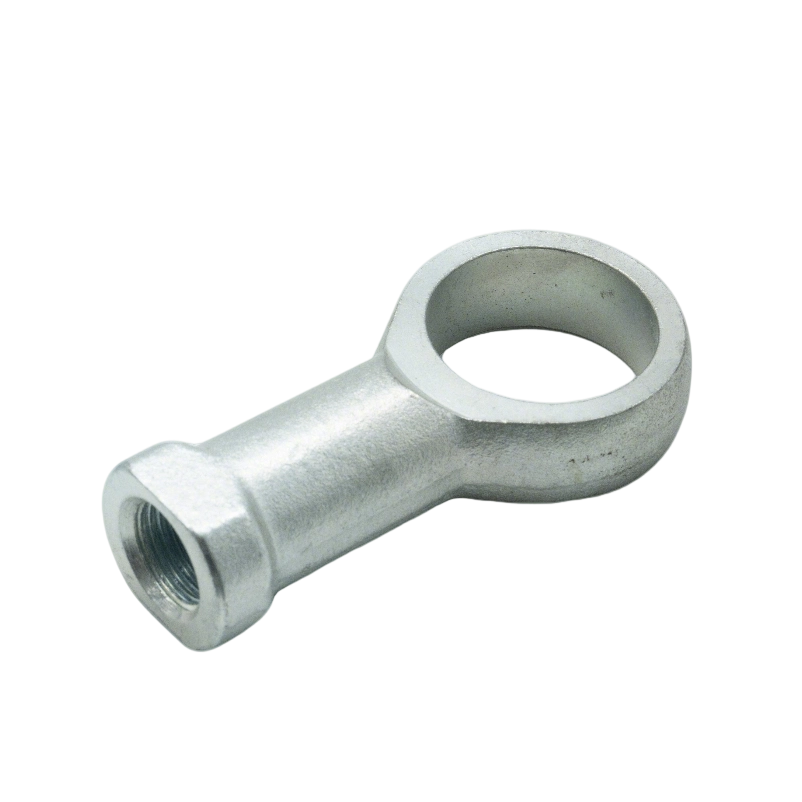

Eye Joint Connecting Pin

RC-PN-003

Description

One-piece CNC turned eye joint connecting pin customized per customer specs, movable hinge fastener for swing connection and frame assembly load-bearing connection.

Manufacturing Process

One-Shot CNC Turning, Inner Hole Precision Machining, Chamfering

Material

Carbon Steel, Alloy Steel, Stainless Steel, Brass

Surface Treatment

Electro Zinc Plating, Hot Dip Galvanizing, Black Oxide, Passivation

Features

• Integral formed eye ring structure, high structural strength
• Smooth precision-machined inner hole for flexible rotation
• Custom load-bearing diameter & eye ring size
• Anti-rust surface treatment for outdoor equipment use
• Non-standard special eye shape customization available

Application

RV Accessories, Construction Machinery, Agricultural Equipment, Mechanical Frame Assembly, Hydraulic Cylinder Hinge Parts

Drawing
