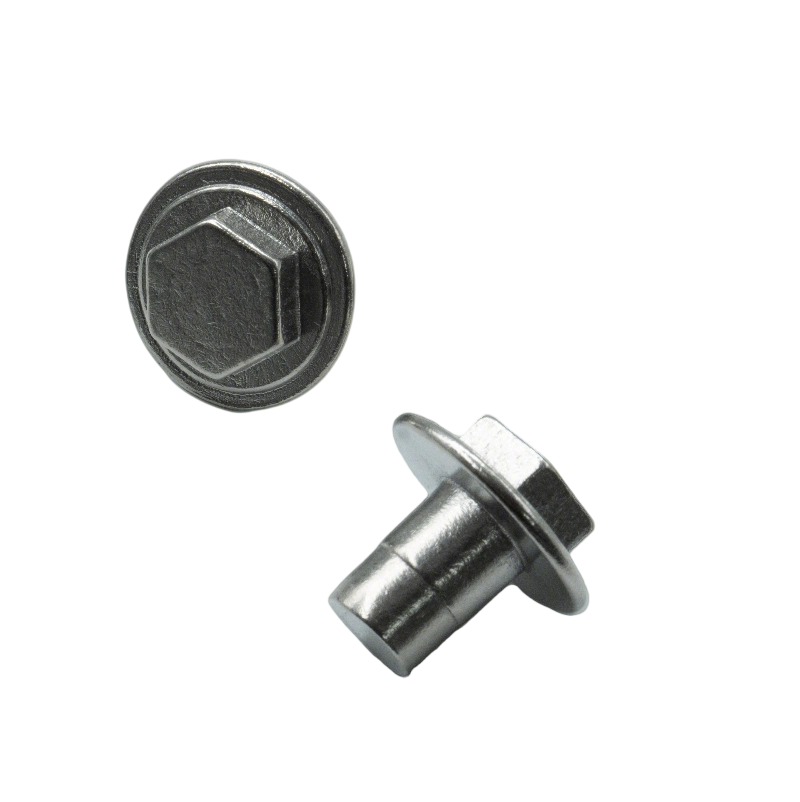

Flange Step Locating Pin

RC-PN-001

Description

Custom CNC turned flange step locating pin manufactured according to OEM drawings, high-precision positioning fastener with integrated flange stop, widely used for fixed assembly and accurate limiting in precision mechanical equipment.

Manufacturing Process

CNC Precision Turning, Centerless Grinding, Deburring

Material

Carbon Steel, Alloy Steel, 304/316 Stainless Steel, Aluminum Alloy

Surface Treatment

Zinc Plating, Black Oxide, Phosphate, Hard Chrome Plating, Passivation

Features

• Custom non-standard flange & step dimension available
• Ultra-precise flange locating surface with tight tolerance
• High concentricity turned body, stable positioning accuracy
• Wear-resistant surface finish optional for long service life
• OEM & ODM custom drawing processing supported

Application

Automotive Chassis Parts, Automation Equipment, Injection Molds, Industrial Machinery, Electronic Assembly Hardware

Drawing
